Query Tuning and Missing Index Recommendations

Jun 02

Overview

Most analysts are familiar with missing index recommendations provided by SQL Server when query plans are displayed within SSMS or reported by various missing index DMVs. Several questions arise concerning these recommendations:

What determines whether a column becomes a key or included in the new index?
Where does the ordering of the included columns come from? Does column ordering in queries affect the recommendations, e.g., will query orderings of A, B, C and C, B, A in the selection column list result in the one or two recommendations?
How sophisticated are the missing index recommendations, i.e., does SQL Server compare recommendations and perform any kind of recommendation consolidation or optimization?

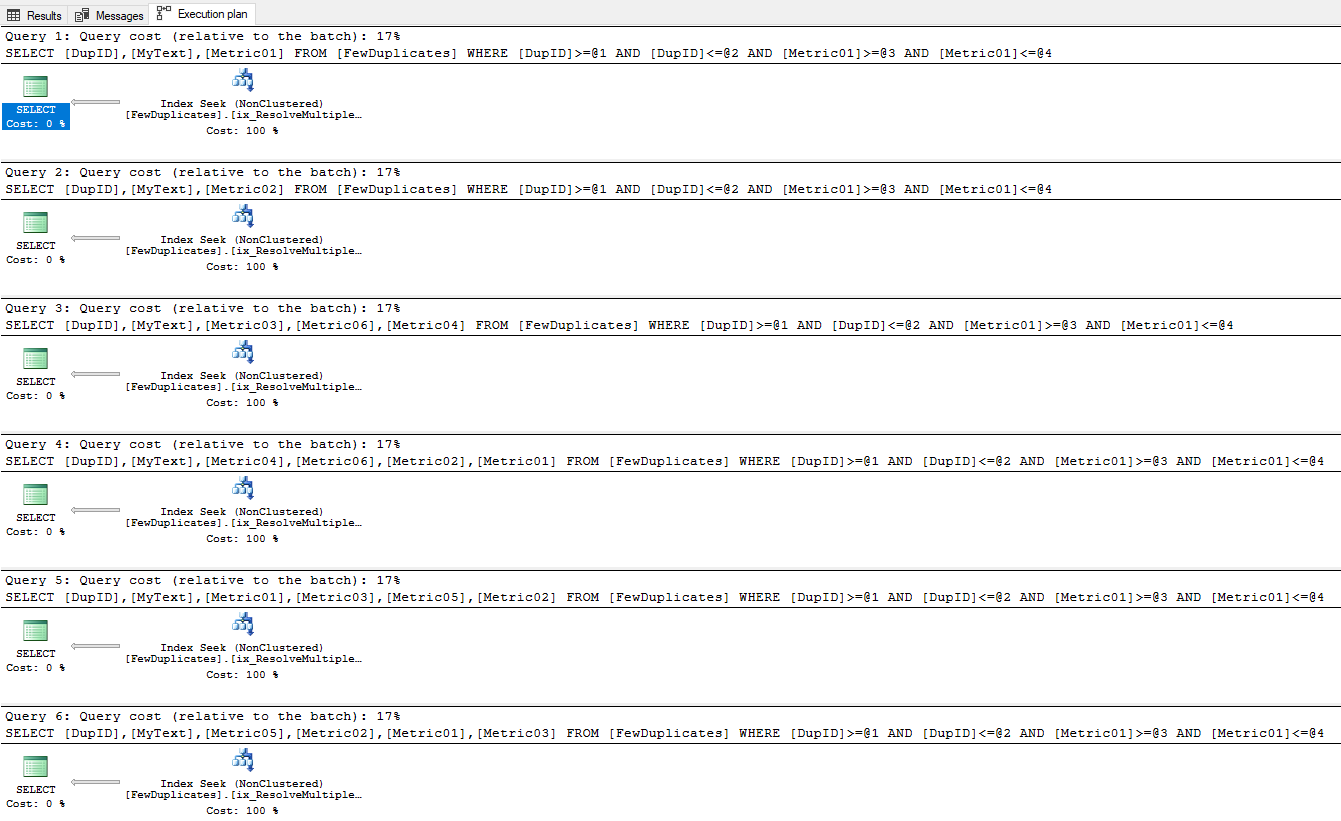

This article provides a reproducible example using six different queries that deliberately caused SQL Server to generate missing index recommendations and provide answers to these questions. The example is used to study missing index recommendations in detail, including how they relate to the underlying table and how query columns affect these recommendations. The article also illustrates how a single consolidated index can address the performance needs of all six queries.

Test Table Creation & Load

To determine missing index recommendation behavior, a generic table was constructed and filled with 20 million records. Each record contained an identity column, an ID column, a text column, and 47 metric columns whose values ranged between 1 and 10,000,000. The large number of table columns was used to insure SQL Server would choose an index option when appropriate. Six queries that incorporated various column combinations were executed (some of which differed only in column ordering). To minimize duplication of column values and skewing of query plans, the ABS(cast(CHECKSUM(NewId()) as bigint)) % 10000000 formula was used to generate values that were as random as possible. Two indices were created: a clustered index that used the identity column as its only key and a second nonclustered index that used DupID as its only column. The scripts for the creation, loading, and initial indexing of the table are shown below.

— ##############################################################

— Create test table

— ##############################################################

drop table FewDuplicates;

CREATE TABLE FewDuplicates (

IDCol bigint identity (20000000,1),

DupID bigint,

MyText varchar(10),

Metric01 bigint, Metric02 bigint, Metric03 bigint, Metric04 bigint, Metric05 bigint,

Metric06 bigint, Metric07 bigint, Metric08 bigint, Metric09 bigint, Metric10 bigint,

Metric11 bigint, Metric12 bigint, Metric13 bigint, Metric14 bigint, Metric15 bigint,

Metric16 bigint, Metric17 bigint, Metric18 bigint, Metric19 bigint, Metric20 bigint,

Metric21 bigint, Metric22 bigint, Metric23 bigint, Metric24 bigint, Metric25 bigint,

Metric26 bigint, Metric27 bigint, Metric28 bigint, Metric29 bigint, Metric30 bigint,

Metric31 bigint, Metric32 bigint, Metric33 bigint, Metric34 bigint, Metric35 bigint,

Metric36 bigint, Metric37 bigint, Metric38 bigint, Metric39 bigint, Metric40 bigint,

Metric41 bigint, Metric42 bigint, Metric43 bigint, Metric44 bigint, Metric45 bigint,

Metric46 bigint, Metric47 bigint

)

— ##############################################################

— Load original table

— ##############################################################

declare @DupID bigint = 1

declare @NumRecs bigint = 20000000

truncate table FewDuplicates

set nocount on

while (@DupID <= @NumRecs)

begin

insert into [dbo].[FewDuplicates] (

[DupID], [MyText],

[Metric01], [Metric02], [Metric03], [Metric04], [Metric05], [Metric06], [Metric07],

[Metric08], [Metric09], [Metric10], [Metric11], [Metric12], [Metric13], [Metric14],

[Metric15], [Metric16], [Metric17], [Metric18], [Metric19], [Metric20], [Metric21],

[Metric22], [Metric23], [Metric24], [Metric25], [Metric26], [Metric27], [Metric28],

[Metric29], [Metric30], [Metric31], [Metric32], [Metric33], [Metric34], [Metric35],

[Metric36], [Metric37], [Metric38], [Metric39], [Metric40], [Metric41], [Metric42],

[Metric43], [Metric44], [Metric45], [Metric46], [Metric47]

)

VALUES (

@DupID,‘my text’,

ABS(cast(CHECKSUM(NewId()) as bigint)) % 10000000,

ABS(cast(CHECKSUM(NewId()) as bigint)) % 10000000

)

set @DupID += 1

end — group option loop

set nocount off

— ##############################################################

— Create indices on the test table

— ##############################################################

CREATE UNIQUE CLUSTERED INDEX [ci_RecID] ON [dbo].[FewDuplicates]

(

[IDCol] ASC

)

WITH (fillfactor = 100, PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, IGNORE_DUP_KEY = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON)

ON [PRIMARY]

CREATE NONCLUSTERED INDEX [ix_DupID] ON [dbo].[FewDuplicates]

(

DupID ASC

)

WITH (fillfactor = 100, PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, IGNORE_DUP_KEY = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON)

ON [PRIMARY]

Queries & Execution Plans with Missing Index Recommendations

The six queries all performed a range scan based upon DupID and Metric01. Clearly, the ix_DupID index could be used for the first portion of the where clause, but none of the existing indices could assist in the resolution of the second portion of the where clause. Note: All queries used identical where clauses to insure that the only query differences involved the columns that were requested in the select clause. These variations employed different combinations of the first six metric columns included a variety of column orderings. All of the queries returned the same 809 rows. Note: Due to the random nature of the data, the reader will not obtain identical results, but they will be functionally similar. Each query was run separately after the following commands had been executed:

dbcc dropcleanbuffers with no_infomsgs

dbcc freeproccache with no_infomsgs

dbcc freesystemcache(‘TokenAndPermUserStore’) with no_infomsgs

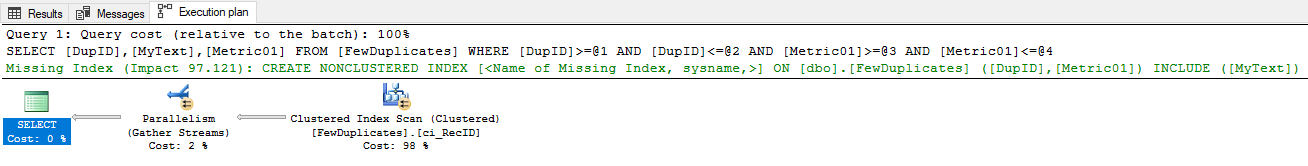

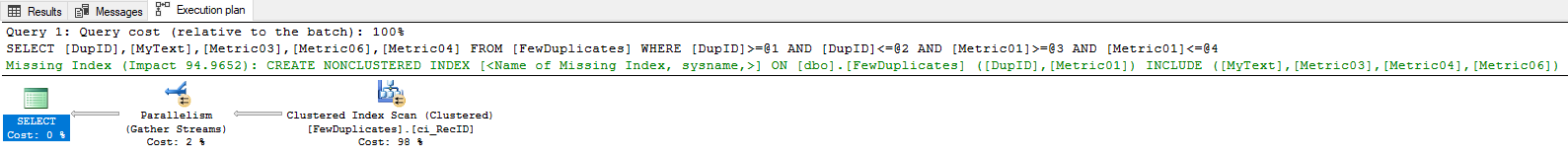

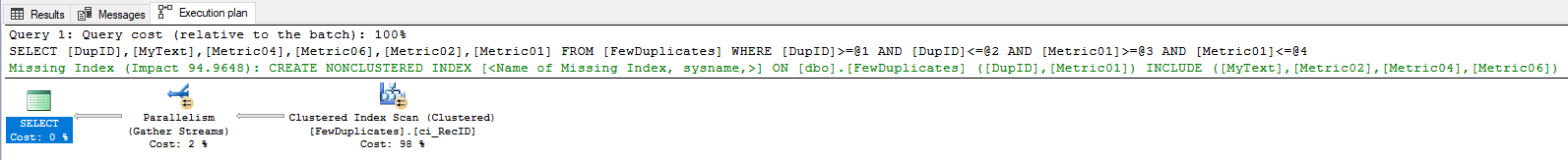

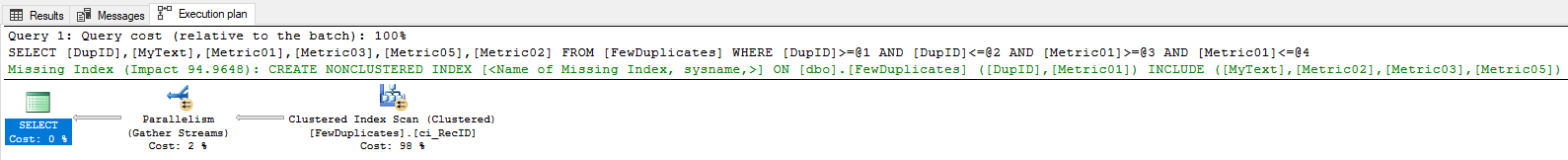

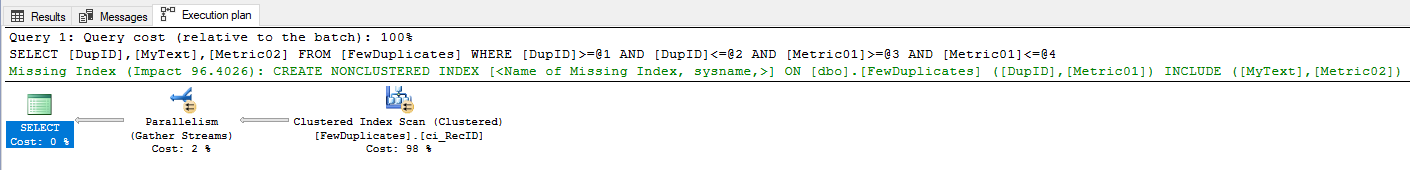

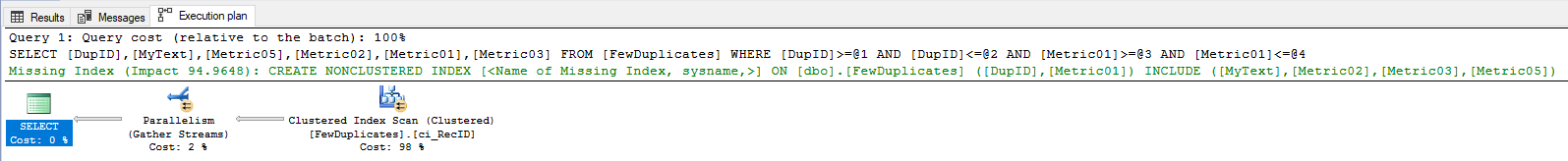

These commands clear all the pertinent caches to insure reproducibility and prevent memory-resident portions of the database from skewing the results. Each query required approximately 90 seconds to execute as shown in Table 1. Each query required approximately one million logical and physical reads to complete. The SSMS option for returning the actual execution plan was set prior to execution, and the six queries and execution plans are shown in the individual query sections below. The first five queries resulted in different recommendations, but the sixth query’s plan and recommended missing index were identical to that of the fifth because the only difference between Queries #5 and #6 is the ordering of the columns (part of the answer to question #2). The differences among all the queries are summarized in Table 2 below.

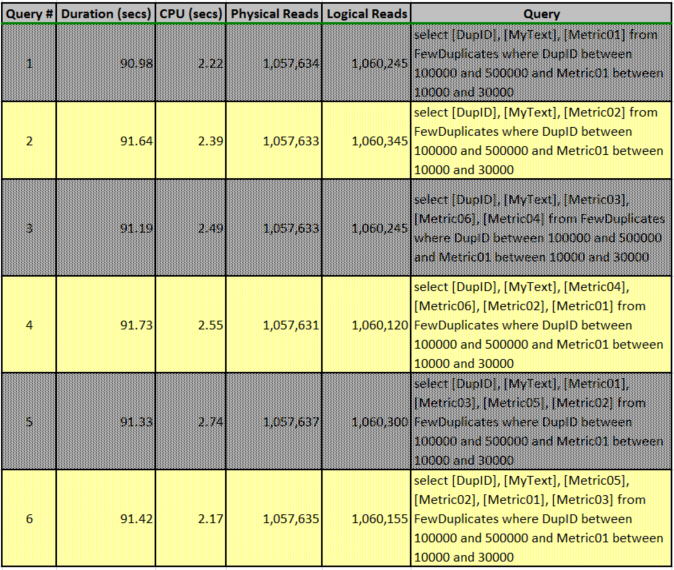

Table 1: Summary of Initial Query Executions & Timings

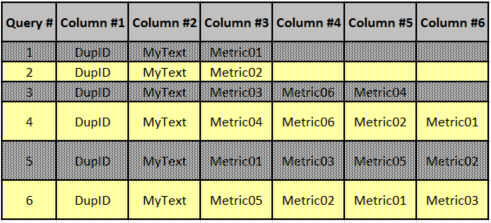

Table 2: Summary of Query Selection Columns
