AlwaysOn – Connection Handshake Failure

By Ginger Daniel | SQL Administration

Dec 21

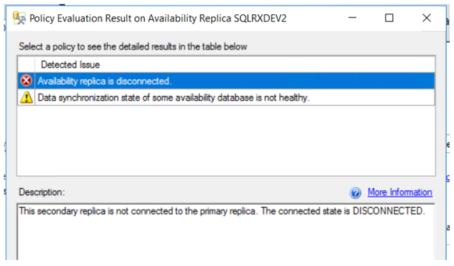

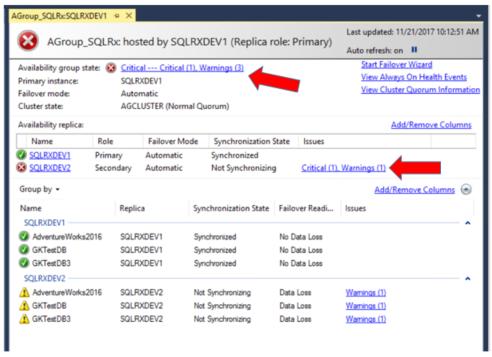

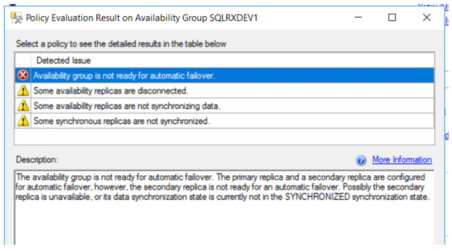

While doing some work on a test environment recently I realized the AlwaysOn Group was failing. (On a production system I would have had several Alerts set to notify me of any issues). The dashboard on my test instance showed that the secondary replica was not synchronizing and from clicking on the blue warning links it actually showed that the secondary was not connected:

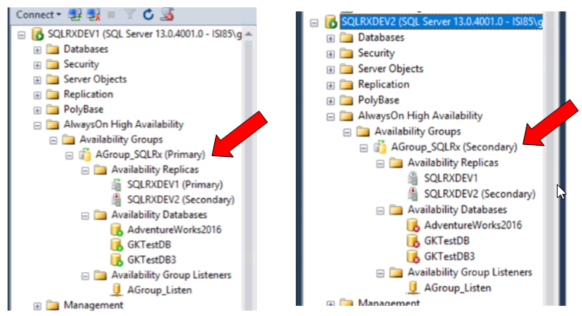

I confirmed that both the primary and secondary instances were up and running, but the secondary Availability Replica and Databases were not connected to the AlwaysOn Group:

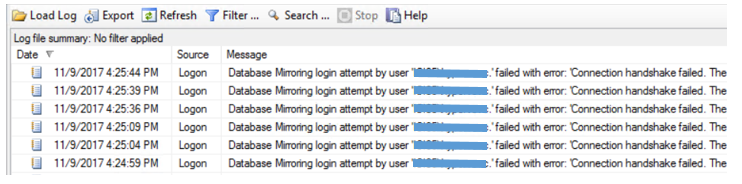

The AlwaysOn Health Events were consistent with the SQL Server Logs. I discovered that the Windows Server Failover Cluster had been down (but was back online), and that the AlwaysOn Group had failed over and back. But the culprit to my secondary replica and databases being disconnected was an endpoint issue. I found in my SQL Server logs the service account running AlwaysOn had for some reason lost its permissions to connect to the endpoint:



Database Mirroring login attempt by user ‘Domain\user.’ failed with error: ‘Connection handshake failed. The login ‘Domain\user’ does not have CONNECT permission on the endpoint. State 84.’. [CLIENT:]


Thankfully the solution to this issue was pretty simple. Run the following script on both the primary and secondary instances to grant the service account running AlwaysOn connect permission:

GRANT CONNECT ON ENDPOINT::hadr_endpoint TO [Domain\user]


This immediately corrected the problem, and the secondary replica and databases were connected to the AlwaysOn Group without any further action.

Unfortunately the cause of issues on a SQL Server are not always apparent after the fact, so that is why it is important to be proactive and set up robust alerts and notifications. For more information on setting up alerting and monitoring for your AlwaysOn Group click here .

For more information about blog posts, concepts and definitions, further explanations, or questions you may have…please contact us at We will be happy to help! Leave a comment and feel free to track back to us. Visit us at!
