SQL Cluster Failover or Restart Notification

By Lori Brown | Helpful Scripts

Sep 10

— by Lori Brown @SQLSupahStah

Since I manage several SQL clusters, I came up with a way to get a notification that the cluster may have failed over. This failover notification was created in self-defense because often times no one from the system administrators team will tell the DBA when work is being done or if there are issues. Many times I have logged onto a SQL cluster only to find that it failed over and have no explanation as to why. It is okay for clusters to failover, after all that is what we build them for, but it would be good to know why in case there is some problem that should be fixed. The failover notification is done by having the SQL Agent run a job that queries the current computer name and compares that value to the last known computer name. You will need an administrative database for the tables.

— Create tables

USE [ADMIN]

GO

CREATE TABLE [dbo].[CurrentNode](

[cnode] [varchar](100) NULL

) ON [PRIMARY]

GO

CREATE TABLE [dbo].[PreviousNode](

[pnode] [varchar](100) NULL

) ON [PRIMARY]

GO

Once the tables are created they need to be populated with the current and previous node table values. These will be the same at first so that if the CurrentNode table is updated after a failover then the comparison query in the job will know it has moved to a different node.

— Prep – Put the same value into both tables so that if the current changes on failover a notice is sent

INSERT INTO CurrentNode (cnode) VALUES (CONVERT(VARCHAR(100),SERVERPROPERTY(‘ComputerNamePhysicalNetBIOS’)))

INSERT INTO PreviousNode (pnode) VALUES (CONVERT(VARCHAR(100),SERVERPROPERTY(‘ComputerNamePhysicalNetBIOS’)))

Here is the code that is used in the job. The logic compares the values in the current node query to the pervious node table and will notify of either a failover or restart of the instance. An e-mail will be sent to notify anyone who needs it of the event.

/******************************************************/

— create job that only runs when the SQL Agent starts that uses the code below.

— replace all <<instancename>> & <<profile>> placeholders with correct values

SET NOCOUNT ON

DECLARE @curnodename VARCHAR(100)

DECLARE @prevnodename VARCHAR(100)

DECLARE @body1 NVARCHAR(MAX)

SET @curnodename = CONVERT(VARCHAR(100),SERVERPROPERTY(‘ComputerNamePhysicalNetBIOS’))

SET @prevnodename = (SELECT pnode FROM PreviousNode)

IF @curnodename <> @prevnodename — Failover

BEGIN

UPDATE CurrentNode SET cnode = @curnodename

— instructions

SET @body1=‘<p> A failover has occurred for the <<InstanceName>> cluster.</p>’

— table attributes

SET @body1=@body1+‘<table border=”2″ cellspacing=”2″ cellpadding=”2″>’

— column headers

SET @body1=@body1+ ‘<tbody align=”left” style=”font-family:Arial; font-size: 11;” <TR><TH>Current Node</TH><TH>Previous Node</TH></TR></tbody>’

— data

SET @body1=@body1 +‘<tbody align=”left” style=”font-family:Arial; font-size: 11;” <TR><TD>’+@curnodename+'</TD><TD>’+@prevnodename+'</TD></TR></tbody>’

— Send an html formatted e-mail to notify of failover

EXEC msdb.dbo.sp_send_dbmail

@profile_name = ‘<<profile>>’,

@recipients = ‘DBA@company.com’,

@subject = ‘Failover on <<instancename>> cluster’,

@body = @body1,

@body_format = ‘HTML’;

UPDATE PreviousNode SET pnode = @curnodename

END

IF @curnodename = @prevnodename  — Restart

BEGIN

— Send an html formatted e-mail to notify of restart

EXEC msdb.dbo.sp_send_dbmail

@profile_name = ‘<<profile>>’,

@recipients = ‘DBA@company.com’,

@subject = ‘Restart of <<InstanceName>> SQL Services’,

@body = ‘The <<InstanceName>> cluster services may have been restarted but not failed over.’;

END

SET NOCOUNT OFF

/******************************************************/

And finally here is the actual job that I created. It will only run if the SQLAgent is started.

— Create job

USE [msdb]

GO

/****** Object:  Job [Failover Notification]    ******/

BEGIN TRANSACTION

DECLARE @ReturnCode INT

SELECT @ReturnCode = 0

/****** Object:  JobCategory [[Uncategorized (Local)]]]    ******/

IF NOT EXISTS (SELECT name FROM msdb.dbo.syscategories WHERE name=N'[Uncategorized (Local)]’ AND category_class=1)

BEGIN

EXEC @ReturnCode = msdb.dbo.sp_add_category @class=N’JOB’, @type=N’LOCAL’, @name=N'[Uncategorized (Local)]’

IF (@@ERROR <> 0 OR @ReturnCode <> 0) GOTO QuitWithRollback

END

DECLARE @jobId BINARY(16)

EXEC @ReturnCode =  msdb.dbo.sp_add_job @job_name=N’Failover Notification’,

@enabled=1,

@notify_level_eventlog=0,

@notify_level_email=2,

@notify_level_netsend=0,

@notify_level_page=0,

@delete_level=0,

@description=N’On restart of SQL Agent this job will run and notify if the instance has failed over.’,

@category_name=N'[Uncategorized (Local)]’,

@owner_login_name=N’sa’,

@notify_email_operator_name=N’DBA’, @job_id = @jobId OUTPUT

IF (@@ERROR <> 0 OR @ReturnCode <> 0) GOTO QuitWithRollback

/****** Object:  Step [FailoverCheck]    ******/

EXEC @ReturnCode = msdb.dbo.sp_add_jobstep @job_id=@jobId, @step_name=N’FailoverCheck’,

@step_id=1,

@cmdexec_success_code=0,

@on_success_action=1,

@on_success_step_id=0,

@on_fail_action=2,

@on_fail_step_id=0,

@retry_attempts=0,

@retry_interval=0,

@os_run_priority=0, @subsystem=N’TSQL’,

@command=N’SET NOCOUNT ON

DECLARE @curnodename VARCHAR(100)

DECLARE @prevnodename VARCHAR(100)

DECLARE @body1 NVARCHAR(MAX)

SET @curnodename = CONVERT(VARCHAR(100),SERVERPROPERTY(”ComputerNamePhysicalNetBIOS”))

SET @prevnodename = (SELECT pnode FROM PreviousNode)

IF @curnodename <> @prevnodename — Failover

BEGIN

UPDATE CurrentNode SET cnode = @curnodename

— instructions

SET @body1=”<p> A failover has occurred for the <<InstanceName>> cluster.</p>”

— table attributes

SET @body1=@body1+”<table border=”2″ cellspacing=”2″ cellpadding=”2″>”

— column headers

SET @body1=@body1+ ”<tbody align=”left” style=”font-family:Arial; font-size: 11;” <TR><TH>Current Node</TH><TH>Previous Node</TH></TR></tbody>”

— data

SET @body1=@body1 +”<tbody align=”left” style=”font-family:Arial; font-size: 11;” <TR><TD>”+@curnodename+”</TD><TD>”+@prevnodename+”</TD></TR></tbody>”

— Send an html formatted e-mail to notify of failover

EXEC msdb.dbo.sp_send_dbmail

@profile_name = ”<<profile>>”,

@recipients = ”DBA@company.com”,

@subject = ”Failover on <<InstanceName>> cluster”,

@body = @body1,

@body_format = ”HTML”;

UPDATE PreviousNode SET pnode = @curnodename

END

IF @curnodename = @prevnodename  — Restart

BEGIN

— Send an html formatted e-mail to notify of restart

EXEC msdb.dbo.sp_send_dbmail

@profile_name = ”<<profile>>”,

@recipients = ”DBA@company.com”,

@subject = ”Restart of <<InstanceName>> SQL Services”,

@body = ”The <<InstanceName>> cluster services may have been restarted but not failed over”;

END

SET NOCOUNT OFF’,

@database_name=N’ADMIN’,

@flags=0

IF (@@ERROR <> 0 OR @ReturnCode <> 0) GOTO QuitWithRollback

EXEC @ReturnCode = msdb.dbo.sp_update_job @job_id = @jobId, @start_step_id = 1

IF (@@ERROR <> 0 OR @ReturnCode <> 0) GOTO QuitWithRollback

EXEC @ReturnCode = msdb.dbo.sp_add_jobschedule @job_id=@jobId, @name=N’failover check sched’,

@enabled=1,

@freq_type=64,

@freq_interval=0,

@freq_subday_type=0,

@freq_subday_interval=0,

@freq_relative_interval=0,

@freq_recurrence_factor=0,

@active_start_date=20150101,

@active_end_date=99991231,

@active_start_time=0,

@active_end_time=235959

IF (@@ERROR <> 0 OR @ReturnCode <> 0) GOTO QuitWithRollback

EXEC @ReturnCode = msdb.dbo.sp_add_jobserver @job_id = @jobId, @server_name = N'(local)’

IF (@@ERROR <> 0 OR @ReturnCode <> 0) GOTO QuitWithRollback

COMMIT TRANSACTION

GOTO EndSave

QuitWithRollback:

IF (@@TRANCOUNT > 0) ROLLBACK TRANSACTION

EndSave:

GO

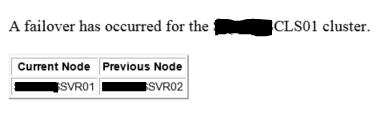

The actual notification looks like this:

Blog_20150910_1

Now I know that when I receive the notification that I need to research why this happens and troubleshoot if necessary. Enjoy!
